Introduction :

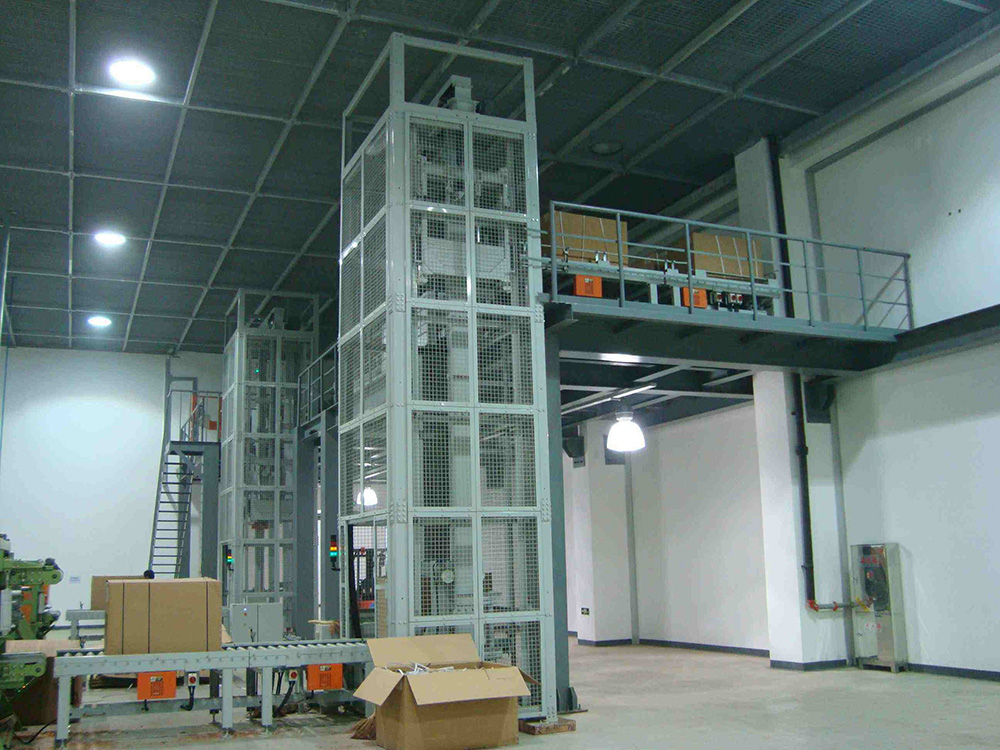

The Continuous Vertical Conveyors is the connecting equipment for the plane transfer system between different floors. It is mainly used for the transportation of goods between floors and is often used in conjunction with other conveyors. Suitable for conveying geometric objects (such as trays, cartons, cases, etc.), and can be widely used in food, beverages, condiments, wine, medicine, daily necessities and other industries.
Desiree's Continuous Vertical Conveyors are designed to convey product in very high capacity between two levels, up or down, on a minimum footprint.  Our CVC's are a space saving alternative to spiral or inclined conveyors.  They maintain the horizontal product orientation and are suitable for a tremendous variety of products, including boxes and cartons, trays and totes, even kegs, rims, tires or bags.

Parameter:




Equipment type

Z type, C type

Cargo specifications

box/packing box/pallet/small cargo

Rated load

500KG

Conveying beat

<30pieces/min

Lifting distance

>1000mm

Lifting speed

<40m/min

Load Transfer speed

16m/min

Transfer machine

chain/roller conveyor

Drive mode

geared motor + chain/wire rope

Power supply

cable

Communication method

Optical communication
