Introduction:

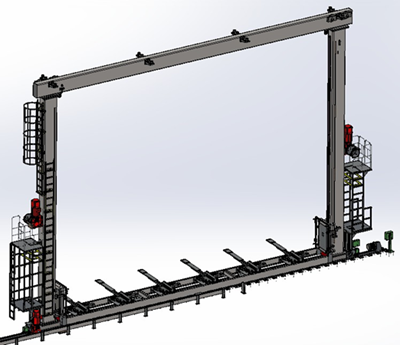

1) The super-long stacker is used to handle super-long materials. It is suitable for materials with a length of 4-12 meters and a load of less than 1500kg. It needs to be equipped with multiple sets of independently controlled forks, which can rise and fall slightly. It is suitable for some bending special-shaped materials Realize double stretch or even triple stretch cargo position control. The maximum operating speed of the equipment is up to 100m/min, and the acceleration is 0.3~0.5m/s2.
Parameter:
L＞12m | |
Cargo Length | 4~12m |
Cargo Position Control | Single Deep/Double Deep/Three Deep |
Number Of Forks | 2~6sets（Customizable Independent Lifting And Telescopic Control） |
Net Load | 1500kg |
Running Speed | 100m/Min |
Running Acceleration | 0.3m/s2 |
Lifting Speed | 30m/Min |
Lifting Acceleration | 0.3m/s2 |
Lifting Method | Double Lifting/Double Walking Device |
