Introduction :

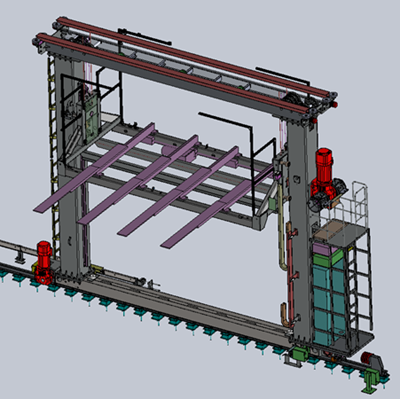

Heavy-duty stacker, the load can reach 5,000kg, and the tooling pallet needs to be specially customized to meet the requirements of the headroom of the heavy-duty fork, and the single-extension control. The equipment speed is generally controlled within 100m/min, and the acceleration is 0.3m/s2.
Parameter:
Overweight Stacker | |
Cargo Platform Structure And Size | Customized According To Cargo Size |
Fork Type | Single Deep |
Net Load | 5000kg |
Running Speed | 100m/Min |
Running Acceleration | 0.3m/s2 |
Lifting Speed | 30m/Min |
Lifting Acceleration | 0.3m/s2 |
Lifting Type | Hoisting Multiple Pulleys + Counterweight |
Lifting Method | Wire Rope Drive |
