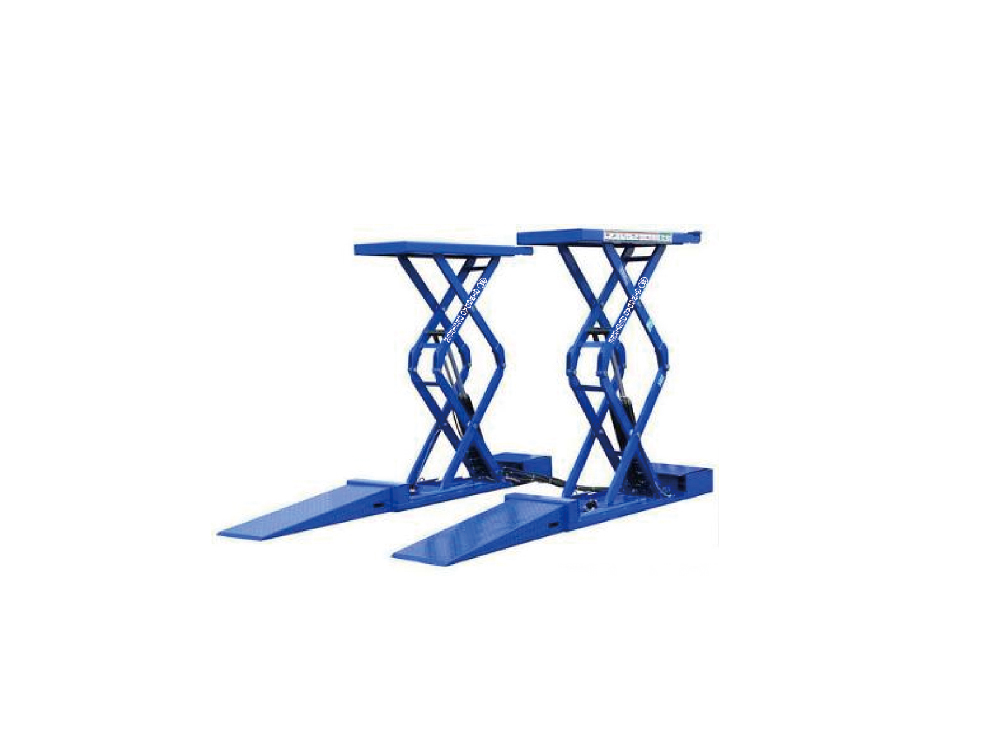

Small Platform Scissor Lift
Small Platform Scissor Lift

Optional overground type or underground type
Four oil cylinders synchronous circuit,keep the height difference of two platforms in 3mm
Optional electric release or pneumatic release
Extensible lifting platform,supply more repair service
Mold machining through the whole process so that the parts are universal and interchangeable
120% capacity dynamic load test and 150% capacity static load test
Italian oil seal to make sure no oil leakage
Solenoid valve with emergency manual drop function
Optional manual pump for lock release in case of power off.
Optional 24V control box and solenoid valve


Model

Lifting Capacity

Lifting Height

Minimum Height

Overall Width

Runway Width

Rise/Drop Time

Power

DSLS607

3200kgs/7000lbs

2120mm

195mm

1980mm

540mm

90/75s

2.2kw
