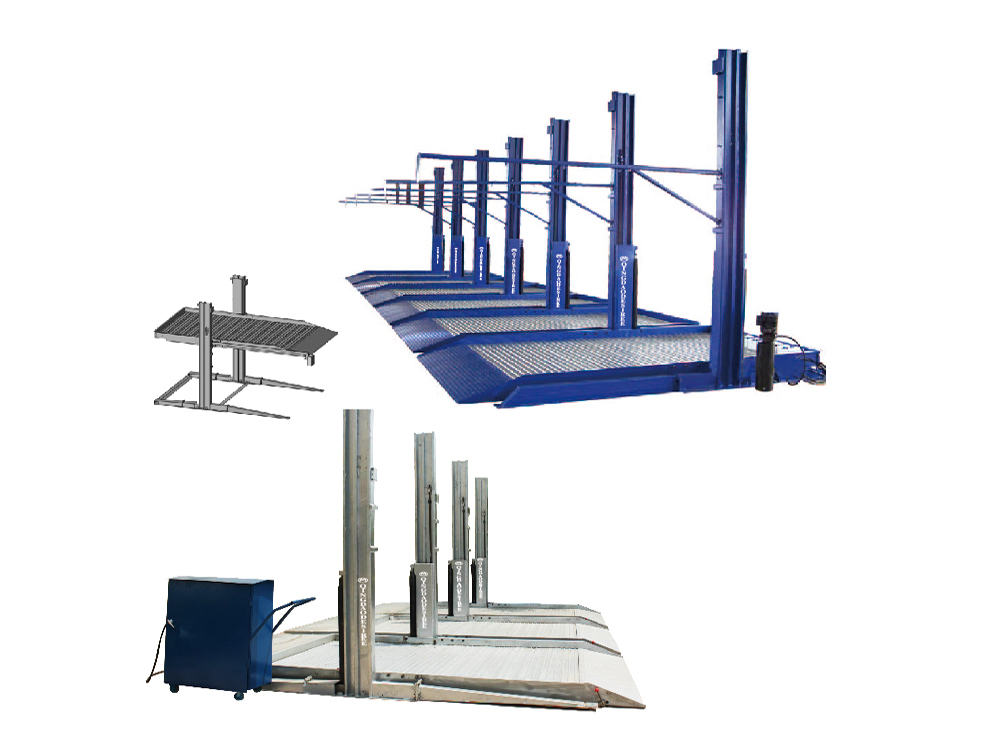

two post simple parking lift
two post simple parking lift

Can be used in household or office building parking lot.
Posts can be shared, more economic and steady.
Dual-cylinder lifting system, more stable and reliable
Chain-equalization system
Single manual or e-lock release system,safe and reliable
Wear-resistant, heat-resistant and high strength macromolecular polyethylene slide blocks
Optional wave plate or diamond plate ,you can choose hot galvanizing,electroplating or powder spray
Mold machining through the whole process so that the parts are universal and interchangeable
Pass 120% capacity dynamic load test and 150% capacity static load test.
Italian oil seal to make sure no oil leakage
Solenoid valve has the emergency manual lock release function.
Optional manual pump on power unit in case of power off.
Optional 24v control box,solenoid valve and electromagnet
Optional ultrared rays alarm device, in case of unguarded entrance


Model No.

Lifting Capacity

Lifting Height

Runway Width

Outer Dimensions(L*W*H)

Rise/Drop time

Power

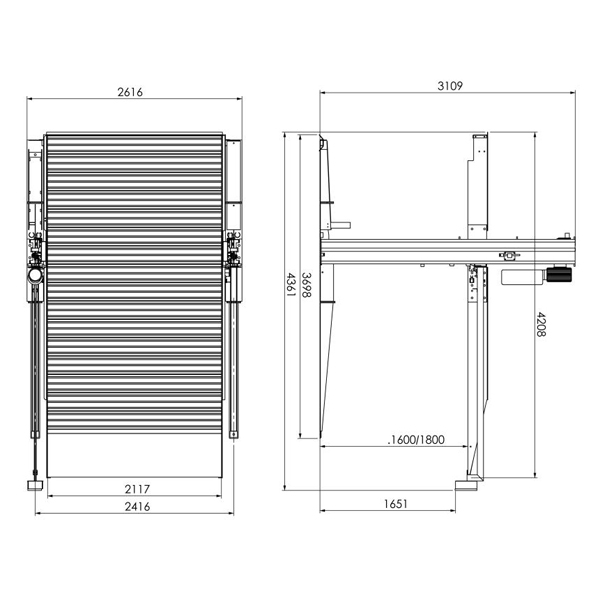

DTPP606L

2700kgs/6000lbs

1600/1800mm

2117mm

4208*2616*3109mm

90/75s

2.2kw

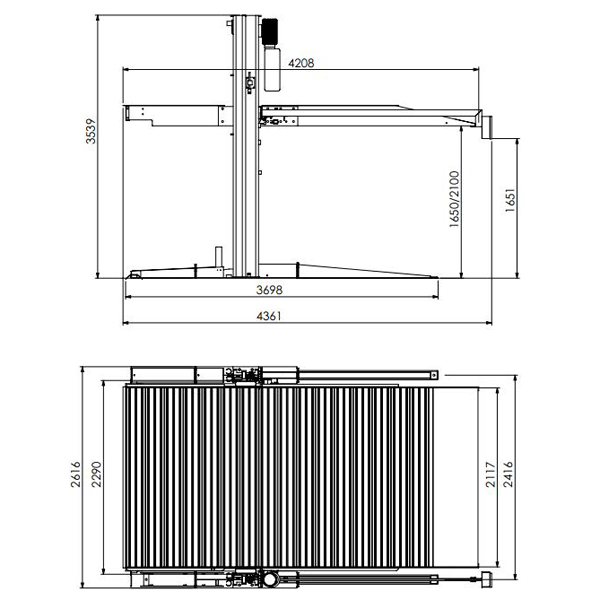

DTPP606H

2700kgs/6000lbs

1650/2100mm

2117mm

4208*2616*3539mm

95/80s

2.2kw

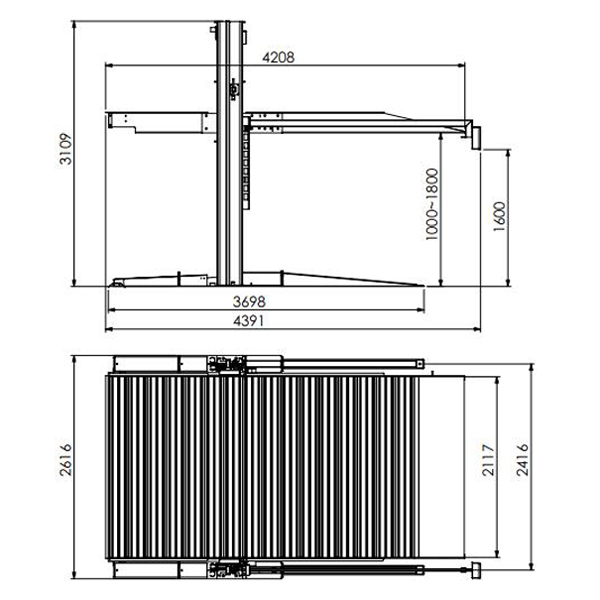

DTPP606N

2700kgs/6000lbs

1000~1800mm

2117mm

4391*2616*3109mm

90/75s

2.2kw
