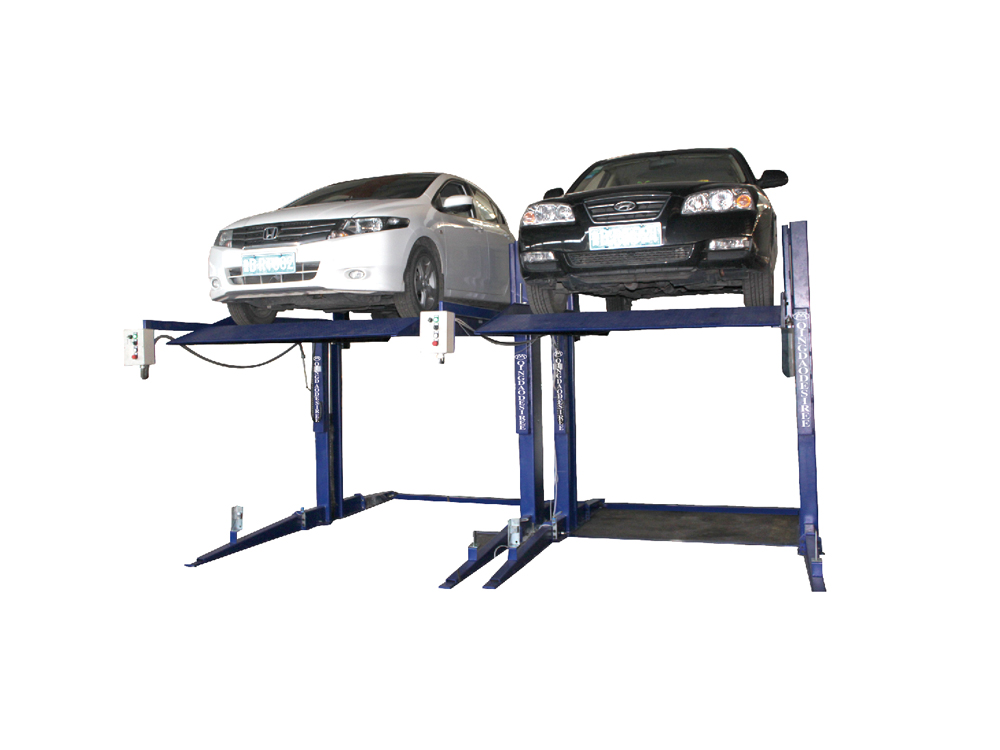

Can be used in household or office building parking lot.
Dual-cylinder lifting system, more stable and reliable
Cable-equalization system
Low post,chain-driven system, faster lifting and lowering speed.
Single e-lock release system, safe and reliable
Wear-resistant, heat-resistant and high strength Macromolecular polyethylene slide block
Optional wave plate or diamond plate,you can choose hot galvanizing,electroplating or powder spray
Mold machining through the whole process so that the parts are universal and interchangeable
Pass 120% capacity Dynamic load test and 150% capacity capacity static load test.
Italian oil seal to make sure no oil leakage
Solenoid valve has the emergency manual lock release function.
Optional manual pump on power unit in case of power off.
Optional 24v control box,solenoid valve and electromagnet
Optional ultrared rays alarm device, in case of unguarded entrance
Model No. | Lifting Capacity | Lifting Height | Runway Width | Outer Dimensions(L*W*H) | Rise/Drop time | Power | |
DTPP607 | 2700kgs/6000lbs | 1600/1840mm | 2117mm | 4256*2652*2796mm | 45/40s | 2.2kw | |
DTPP607N | 2200kgs/5000lbs | 1600/1840mm | 1890mm | 4256*2425*2796mm | 45/40s | 2.2kw |
