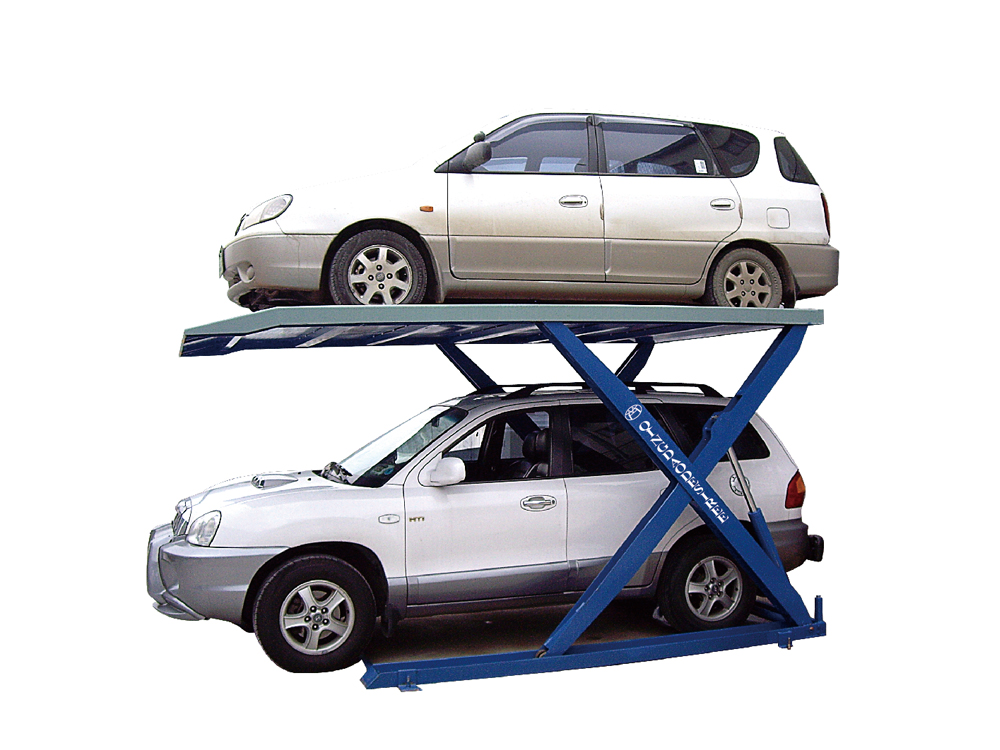

Scissor Parking Lift
Scissor Parking Lift

Can be used in household or office building parking lot.
Graceful and Compact configuration
Driven by hydraulic cylinders directly,equalizer ensures the synchronization and level of platform
Simple and practical lock system,automatic lock and release system, safe and reliable
Optional wave plate or diamond plate,you can choose hot galvanizing,electroplating or powder spray
Mold machining through the whole process so that the parts are universal and interchangeable
Pass 120% capacity dynamic load test and 150% capacity static load test.
Italian oil seal to make sure no oil leakage
Solenoid valve has the emergency manual lock release function.
Optional manual pump on power unit in case of power off.
Optional 24v control box and solenoid valve
Optional ultrared rays alarm device, in case of unguarded entrance

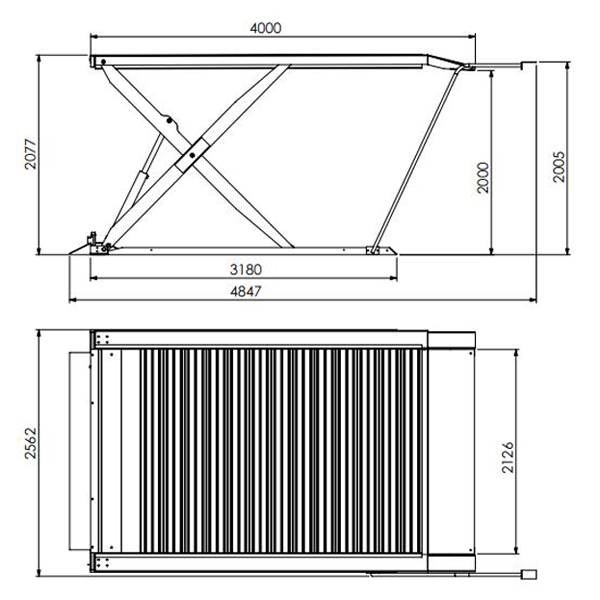

Model No.

Lifting Capacity

Lifting Height

Runway Width

Outer Dimensions(L*W*H)

Rise/Drop time

Power

DSPL606

2700kgs/6000lbs

2000mm

2126mm

4847*2562*2077mm

60/50s

2.2kw
