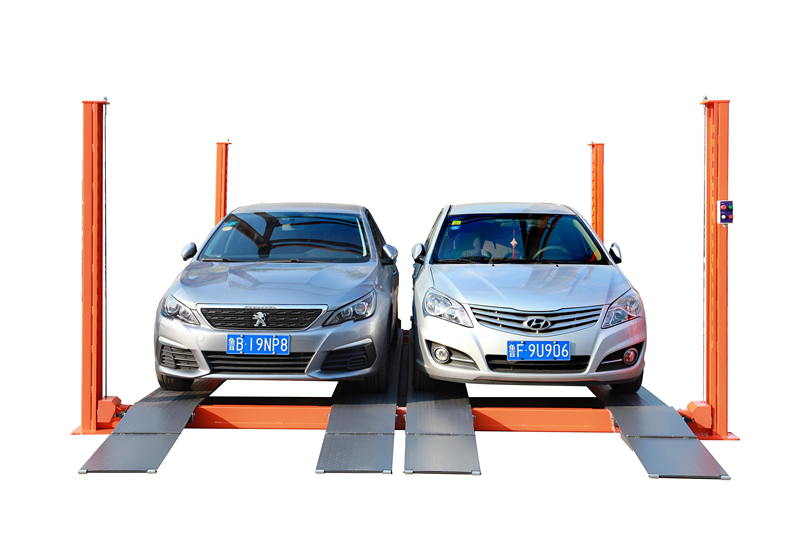

four post simple parking lift
four post simple parking lift

1.Offering space for 4 cars parking
2. Customized according to layout, Space & cost saving due to its compact design.
3.  Double safety locks: first are one piece adjustable safety lock ladder  and the other will be activated automatically in case of steel wire  rupture.
4. Hydraulic driven and steel rope lifting system.
5. Electric operation with operation panel.
6. Automatic locking system with electric lock release.
7. The whole sliding framework synchronous balance system.
8. Suitable for multi-vehicle parking & storage.
9. Steel parts are sandblasted then anti-corrosion primer painted and finish color coated.


Model No.

Lifting Capacity

Lifting Height

Width Between Posts

Width Between Runways

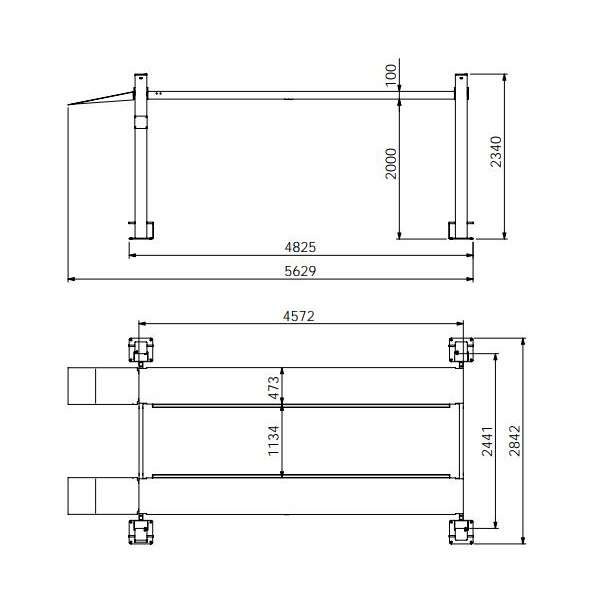

Outer Dimensions/L*W*H

Rise/Drop Time

Power

DFP608XLTE2+2

3700kgs/8000lbs

2068mm

3858mm

952mm

4630*4825*2338mm

65/60s

2.2kw
