pit type two floor parking Lift for two cars
pit type two floor parking Lift for two cars

Simple operation, economical and practical design,1 parking space for 2 cars
Pit type stacker,can be used in household or office building parking lot.
Sharing post design, space saving ,economic and more steady.
No steel structure above ground, simple and graceful

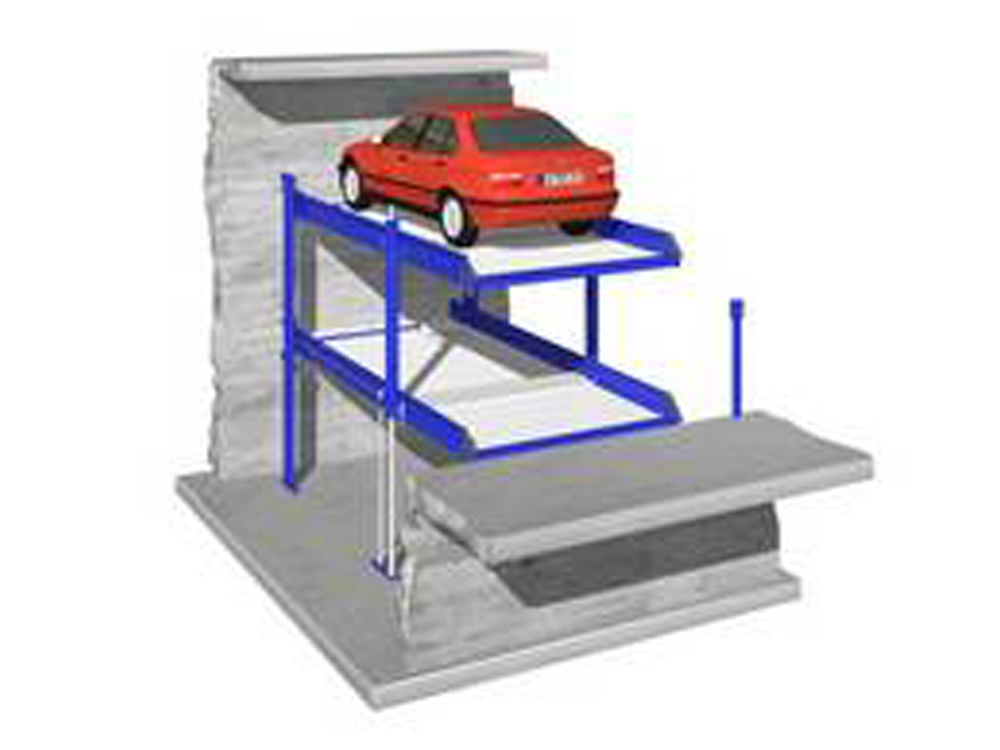

The  upper and lower space are fixed together, normally, the system lower to  the pit,  you can park car on upper space directly or rise the system  to park the car on lower space.
Multiple safety protection device
Optional hydraulic oil cylinder or motor & chain driven mode
Optional Wave plate or diamond plate platform,you can choose hot galvanizing,electroplating or powder spray
Mold machining through the whole process so that the parts are universal and interchangeable
Pass 120% capacity dynamic load test and 150% capacity static load test.
Italian oil seal to make sure no oil leakage,inner anti-explosion valve in case of platform drop
Optional ultrared rays alarm device, in case of unguarded entrance


Model No.

Lifting Capacity

Lifting Height

Runway Width

Outer DimensionsL*W*H

Rise/Drop time

Power

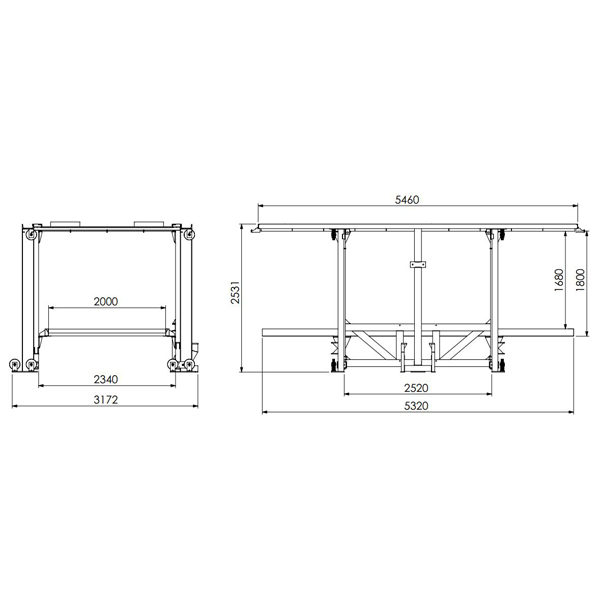

DPS2-5A

5000kgs/11000lbs

1680mm

2000mm

5460*3172*2531mm

55/50s

2.2kw

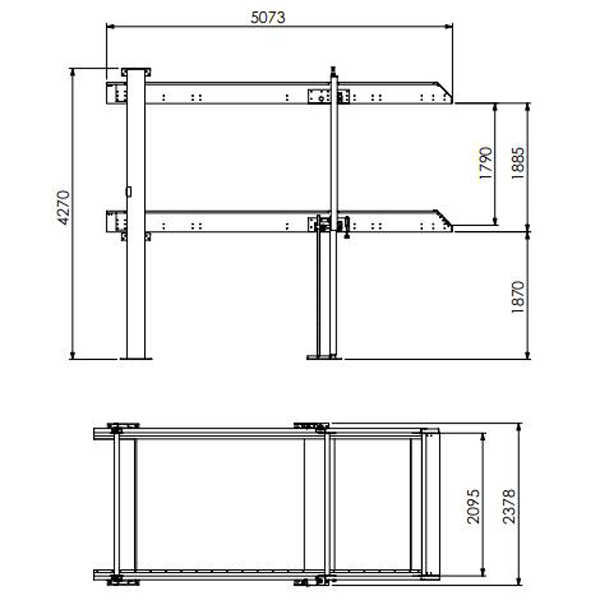

DPS2-5B

5000kgs/11000lbs

1790mm

2095mm

5073*2378*4270mm

55/50s

2.2kw
