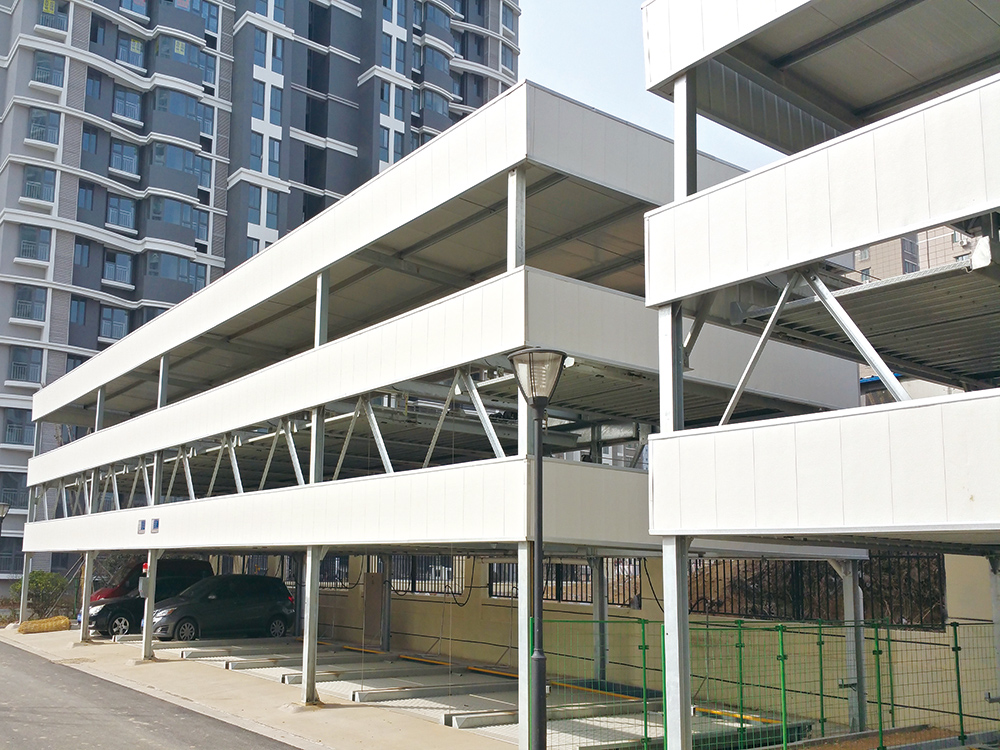

The equipment can make up down or left right movement due to the pallet. Each of parking spare has a pallet , the top pallet can only moved up down and the middle pallet can moved up-down and left right and the ground floor pallet can only moved left right . Except the top floor , there is a spare parking space on the each floor . It can be changed when the top floor pallet needs to down, thereby the cars can go in or go out of the parking space. Cars on the ground pallet can drive directly.
There are lost of types and dimensions . Adapt to different of ground . Save a great deal of space .
Especially suitable for office building, living district and reconstruction of underground garage .
Low cost and high quality, ensure the safety . Both combining and modular installation are possible, can suit all kinds of requirement .
PLC intelligent control system can fulfil different of client requirement .
Four-point suspending wire rope for driving system, stable movement and ensure the operate safety .
Main Technical Parameters:
Max. Car Type
Max. Collection Time
Lifting Motor Power
2nd-4th: 2.2KW; 5th, 6th 3.7KW
Lifting Transmission Mode
button, touch screen, ID card （option）
3 ph AC 380V 50HZ
