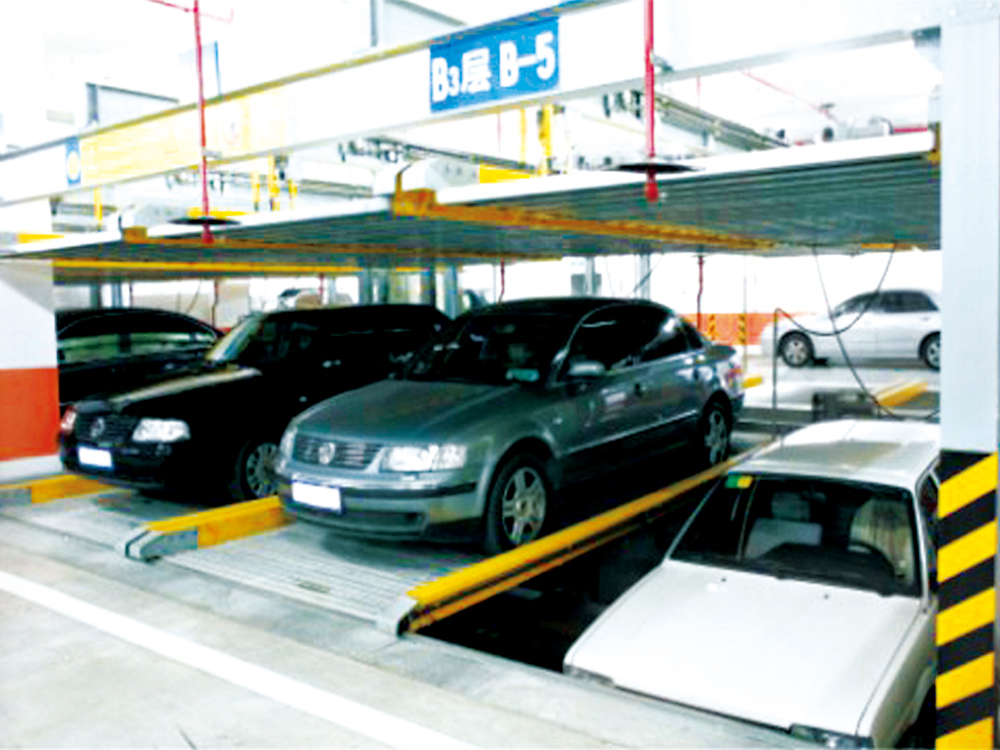

This type of parking system is designed 3 levels of top ,middle and bottom. Two levels are on and above the ground, the bottom level is underground.
There is an exchange space in the middle level.
The spaces in top and bottom levels may lift up and down automatically and the spaces in the middle level can slide left and right. Spaces in the middle
level are in the same line with the ground for cars going in and out freely
When we need to park or get a car in the top or bottom levels, the space in
the middle level over or under this space will slide to the exchange space to from a lifting passage.
This space will be operated down to the ground for parking and retrieving.
Save land area and take full use of the underground space to raise more parking numbers.
The bottom level has functions of dust proof, rainproof and anti-theft.
Outer packing types may be designed as full packing, half packing, simple packing or nude packing according to the customers requirements.
It has advantages of steady operation, low noise,fast operative speed and short time of parking
Fast maintenance and simple malfunction solution with PLC logic circuit.
Multi-channel safety protection and series of safety protection devices for anti-fall , anti-crashing and anti-overloading
Godown the basis local of parking pot, increase the quantity of parking space, reduce the cost of civil work.
Main Technical Parameters:
Max. Car Type
Max. Collection Time
Lifting Motor Power
Lifting Transmission Mode
Chain or Rope(customized)
button, touch screen, ID card （option）
3 ph AC 380V 50HZ
